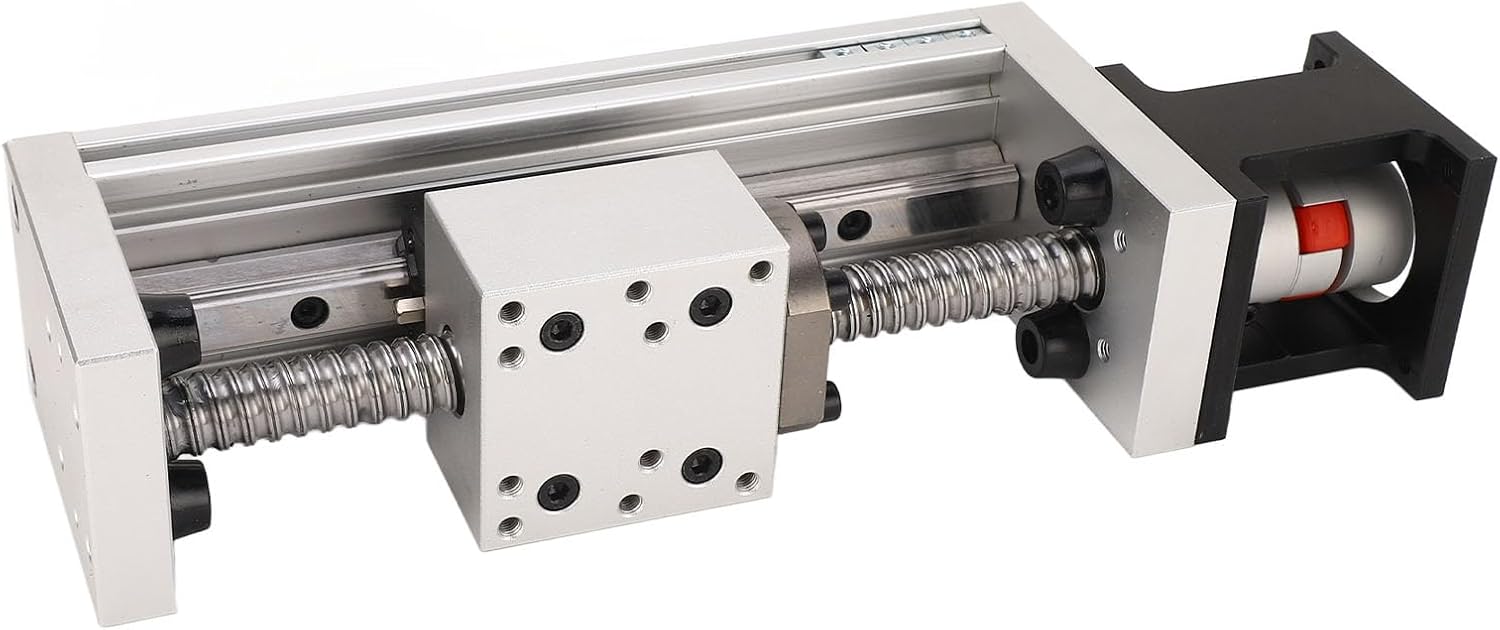

Ball Screw Slide Table 100mm Linear Guide Rail Slide Stage Table CNC Linear Stage Actuator

Item Type: Ball Screw Slide TableLinear Guide: HGR15 x 1, HGW15 x 1Stroke: Approx. 100mm/3.94inScrew Specification: Ball Screw 1605Positioning Accuracy: ±0.03mmScrew: T16Maximum Speed: 800mm/sMaximum Unloading : Horizontal: Approx. 40kg/88.2lb, Vertical: Approx. 20kg/44.1lbPackage List：1 xBall Screw Slide TableNote:Without Motor

• Single Guide Design: This ball screw slide adopts single guide design for stable operating and low noise for X, Y and Z axes.

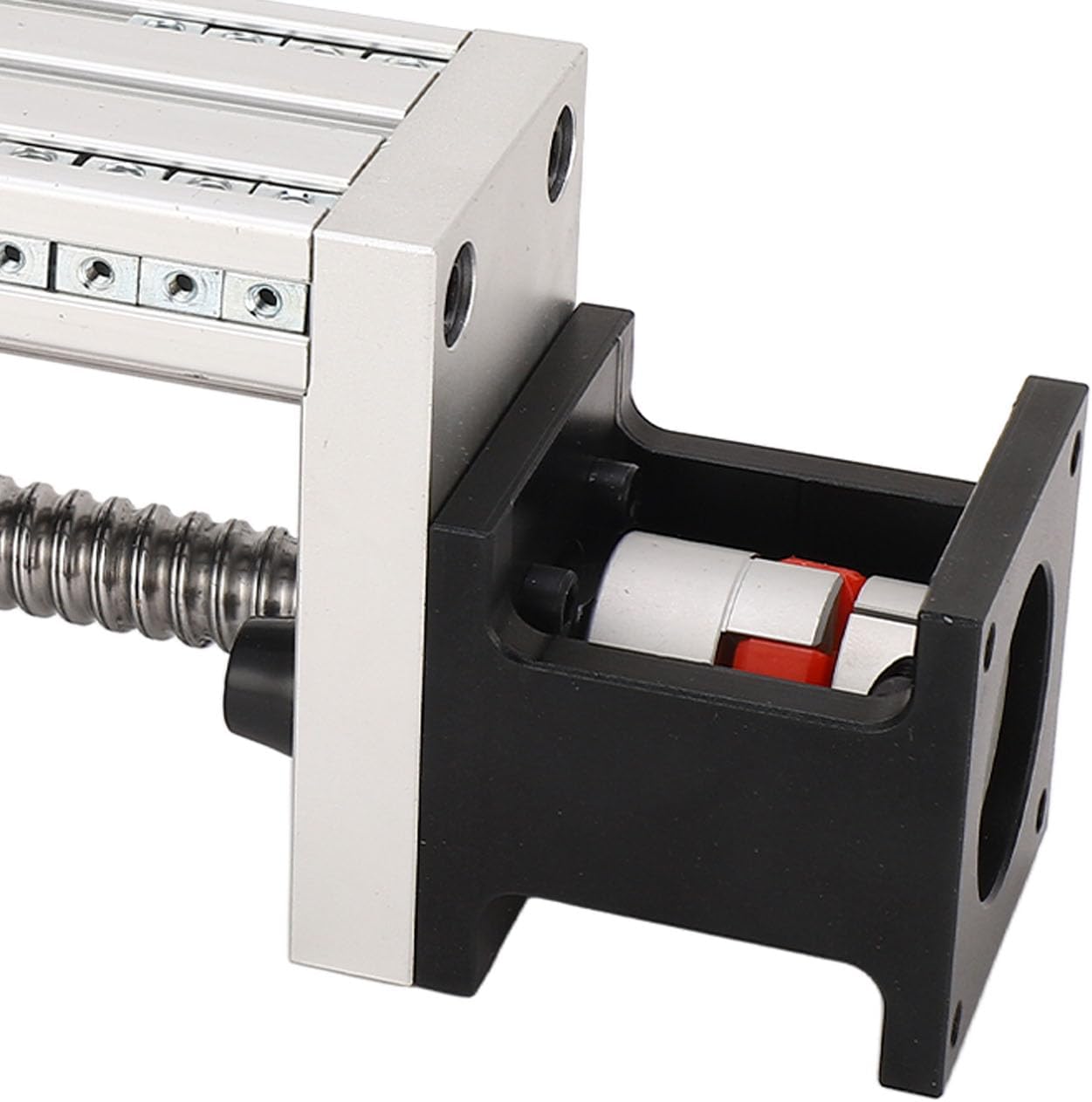

• Good Compatibility: This ball screw slide can be compatible with 57, 86 stepper motors, and 100W, 200W, 300W, 400W servo motors.

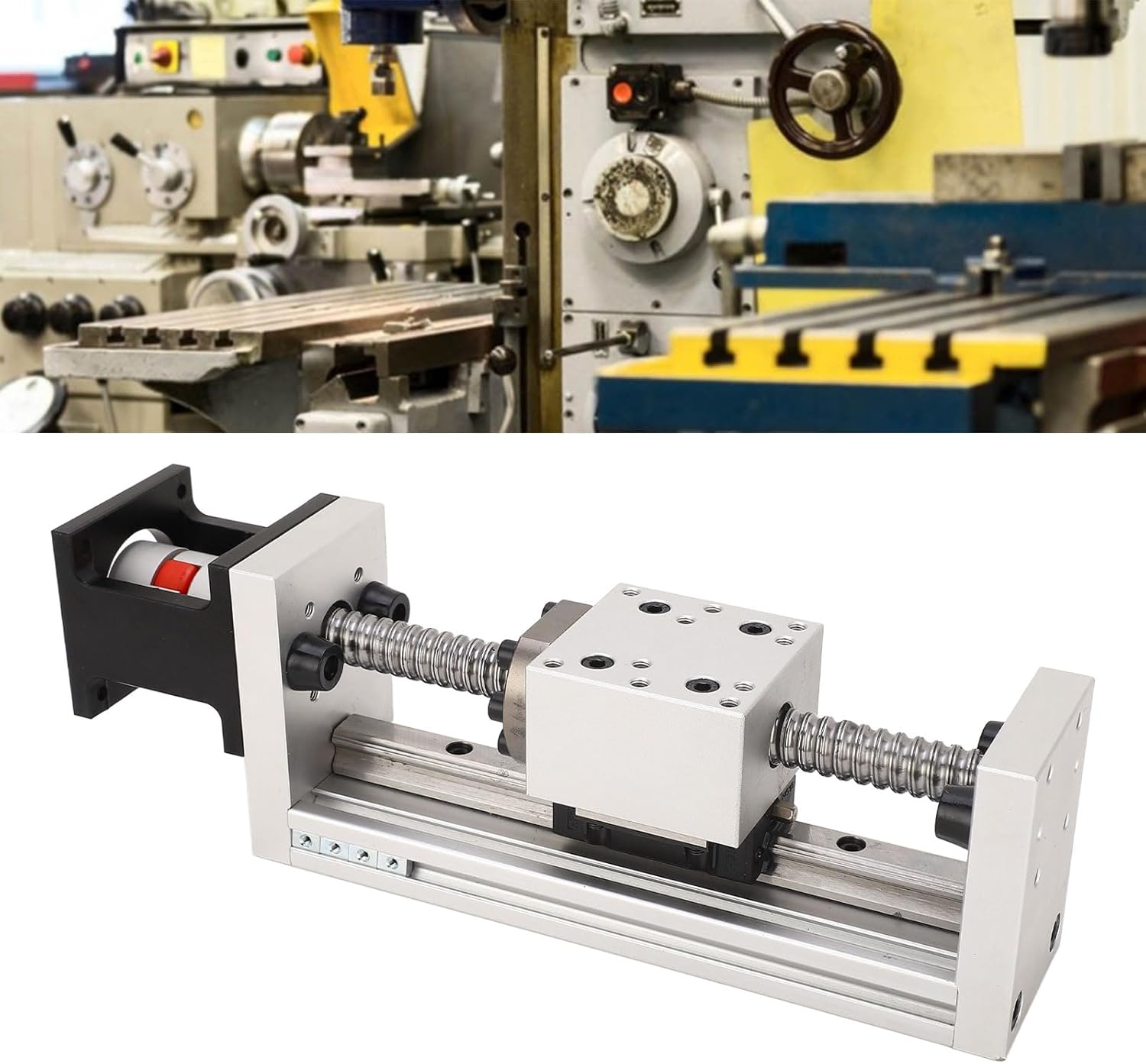

• Wide Application: This ball screw slide is widely used in large automatic rotating devices, CNC milling machines, testing equipment, optical measurement, fine tuning displacement, mechanical positioning and so on.
• Good Performance: This ball screw slide has the advantages of large horizontal and vertical load, high positioning accuracy, high efficiency and good stability.
• Excellent Bearing Steel Material: This ball screw slide is made of excellent bearing steel material, which is sturdy.
