HDV-S12 3G/HD/ SD¨CSDI Splitter 1 2 One SDI Input Two Output Distributor Video for HDTV Monitor

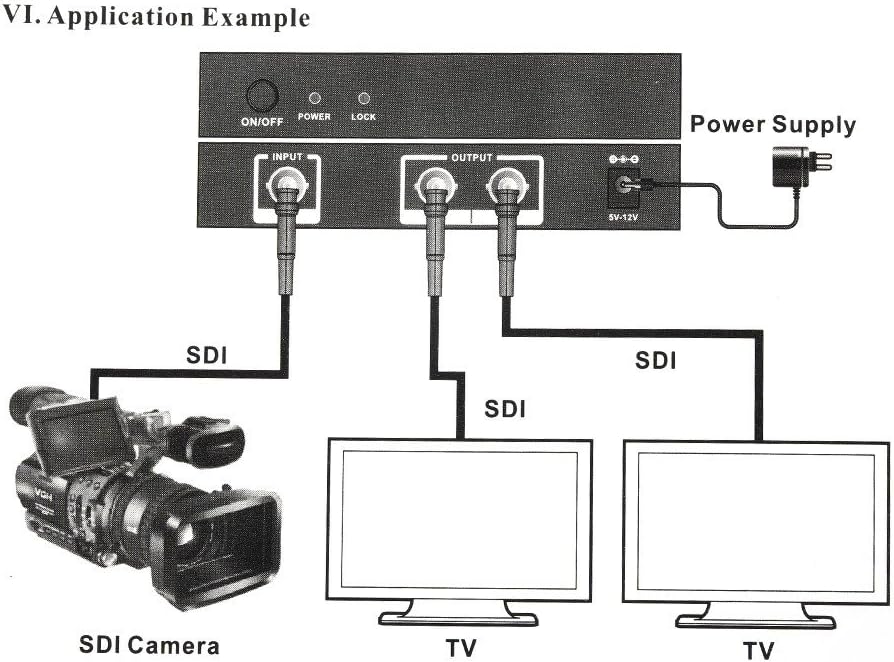

The 1 * 2 SDI Splitter allows to Distribute 1 SDI, HD-SDI & 3G-SDI video source to 2 SDI / HD-SDI / 3G-SDI displays simultaneously. And, The Splitter has built-in automatic identification function, and compatible with SDI, HD-SDI & 3G-SDI (All formats of SDI) signal. It not only supports 2.97Gbps bandwidth, but also supports lossless transmission over long distance. The portable Splitter bring you much fun & convenience. Features: Allows to Distribute 1 SDI, HD-SDI & 3G-SDI video source to 2 SDI displays simultaneously. Supports SD / SDI (270Mb/s), HD-SDI (1.485Gb/s), 3G-SDI (2.97Gb/s) video formats. Built-in cable equilibrium, clock recovery and drive. Supports resolution up to 1920 * 1080p@60Hz Supports signal input and output distance of up to 300m for SD signal, 200m for HD signal and 100m for 3G signals. Supports 5 ~ 12V vide voltage input.

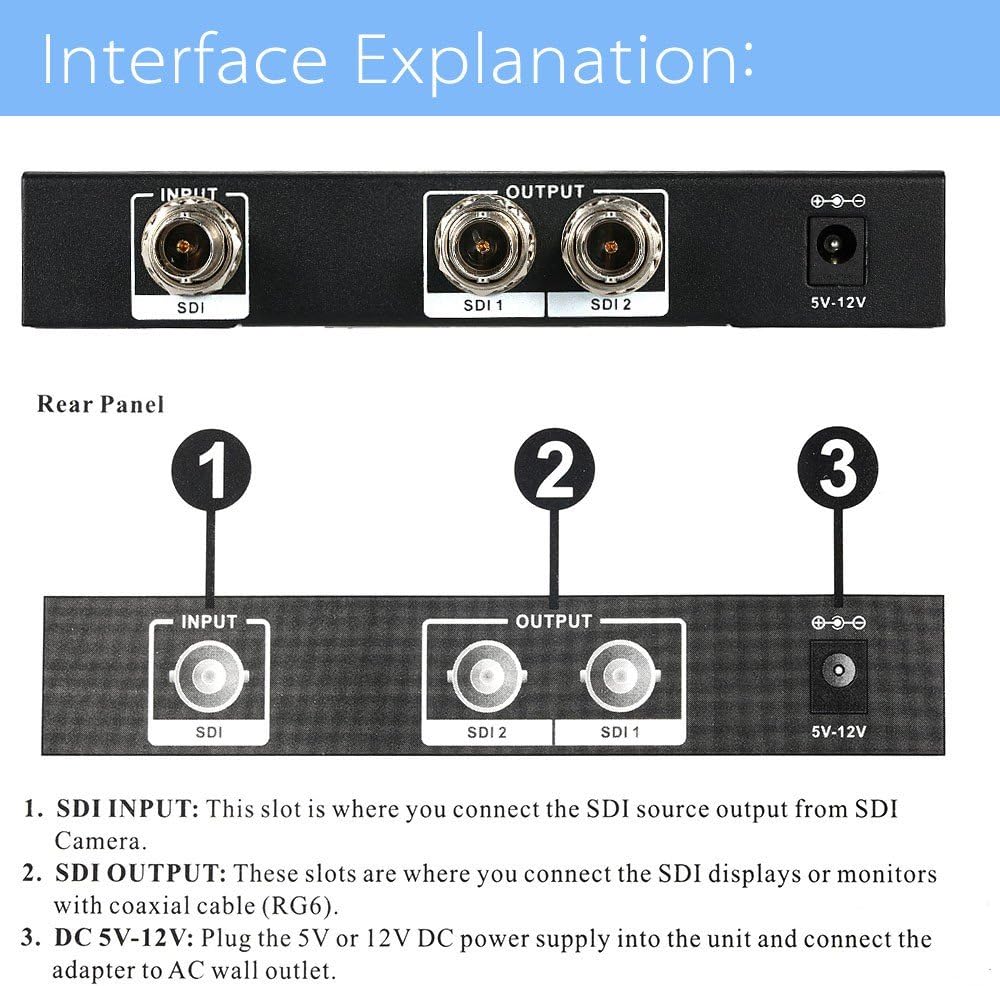

• Specifications: Frequency Bandwidth: 3Gbps SDI Splitter Input Ports: 1 * BNC Female Input Port SDI Splitter Output Ports: 2 * BNC Female Input Ports Power Consumption (Max): 1.5W Power Supply: DC5V/1A ESD Protection Human Body Model: 8kV (air-gap discharge); 8kV(contact discharge) Storage Temperature: 0 ~ 40 Relative Humidity: 20 ~ 90% RH (Non-condensing) Color: Black Item size: 14.5 * 8.5 * 2.5cm / 5.7 * 3.3 * 0.98in Item weight: 162g / 5.7oz Package size: 21.0 * 14.8 *
• .5cm / 5.8 * 5.04 * 2.1in Package weight: 334g / 11.7oz
